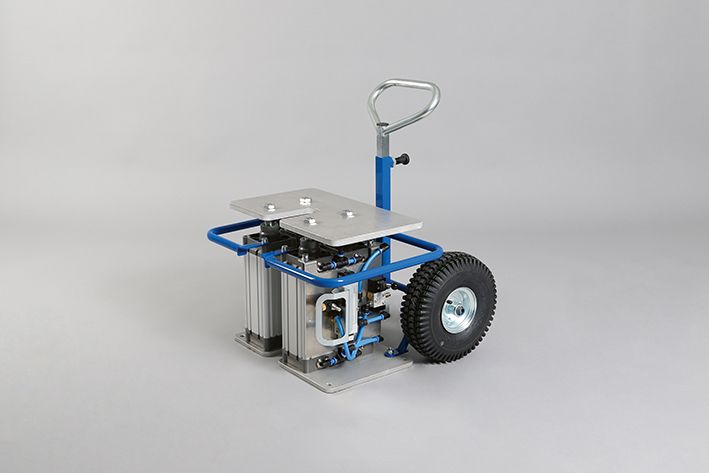

11525_DESOI PullDevice P-1.jpg

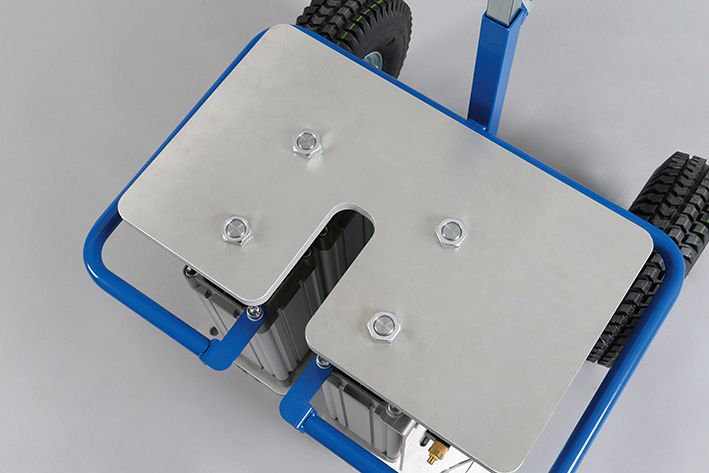

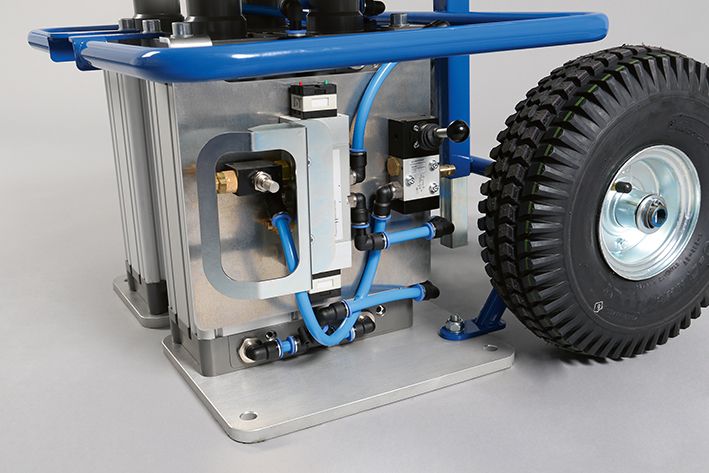

11525_DESOI PullDevice P-1.jpg 11525_DESOI PullDevice P-1_Bedien- und Steuerelement.jpg 11525_DESOI PullDevice P-1_Aufnahmeplatte.jpg

DESOI PullDevice P-1

moving device, 4 x double-acting cylinders, 5/2-way oscillating valve, 3/2-way hand valve with locking function, reducing valve, incl. instruction manual
Vantaggio/Nota
  • Usable for ram injection lances G1/4" or G1/2"
  • Optimal power transmission
  • Mobility through moving device
  • Tightening speed adjustable
  • Easy operation
Dati tecnici
Working pressure 3 - 8 bar
Starting power ca. 800 - 2100 kg
Tightening (piston stroke) max. 160 mm
Air consumption approx. 700 - max. 900 l/min
Weight 43 kg
L x W x H 56 x 58 x 72 - 106 cm
Descrizione del prodotto
mobile, pneumatic pulling device DESOI PullDevice P-1 with four double-acting cylinders and switching to automatic mode for pulling the ram injection lances.
