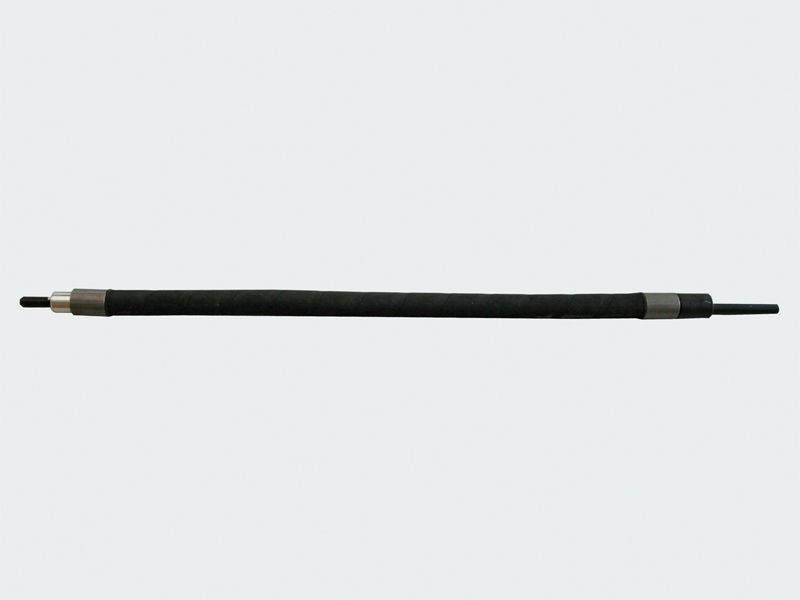

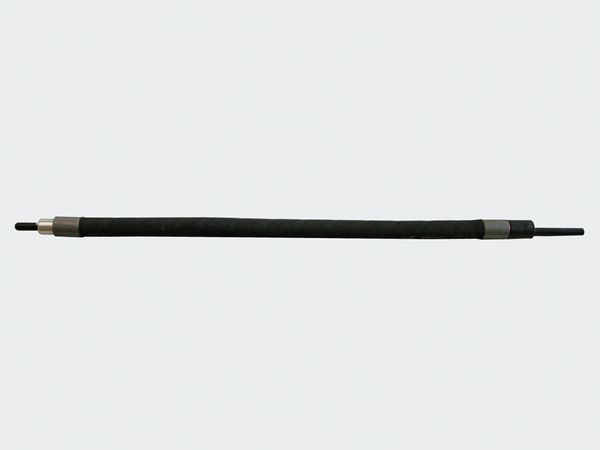

Single inflatable packer TPE 28 S
for borehole Ø 28-38 mm

500 mm inflation hose length, inside Ø 7 mm, connection thread for material hose inside M10x1, connection thread for expansion line inside M7x1

Numero di articolo:

68816

PU:

1 piece

Vantaggio/Nota

Type	TPE 28 S
Borehole Ø	min.-max. 28-38 mm
Borehole Ø 28 mm	max. expansion pressure 140 bar, max. injection pressure 120 bar
Borehole Ø 30 mm	max. expansion pressure 100 bar, max. injection pressure 80 bar
Borehole Ø 35 mm	max. expansion pressure 80 bar, max. injection pressure 60 bar
Inflation hose length	500 mm
Free passage Ø	4 mm
Connection thread for material hose	inside M10x1
Connection thread for expansion line	inside M7x1
Weight	0.58 kg
Total length	745 mm
Securing cord	no

Single inflatable packer TPE 28 Sfor borehole Ø 28-38 mm
